Chan Tak Tai Auditorium

陳德泰大會堂

Since its opening in 1999, the Chan Tak Tai Auditorium has become a focal venue for holding cultural activities at Lingnan University.

The Auditorium is elegantly set in 2 levels, with balcony and stall seating accommodating up to 1,030 persons, and is well-equipped with powered flying system, sound and lighting facilities. It is suitable for holding various kinds of cultural performances, seminars and university functions.

The Auditorium is reserved for University activities and is not open for booking by external parties.

Booking Form CDM4012 (🔒 Staff)

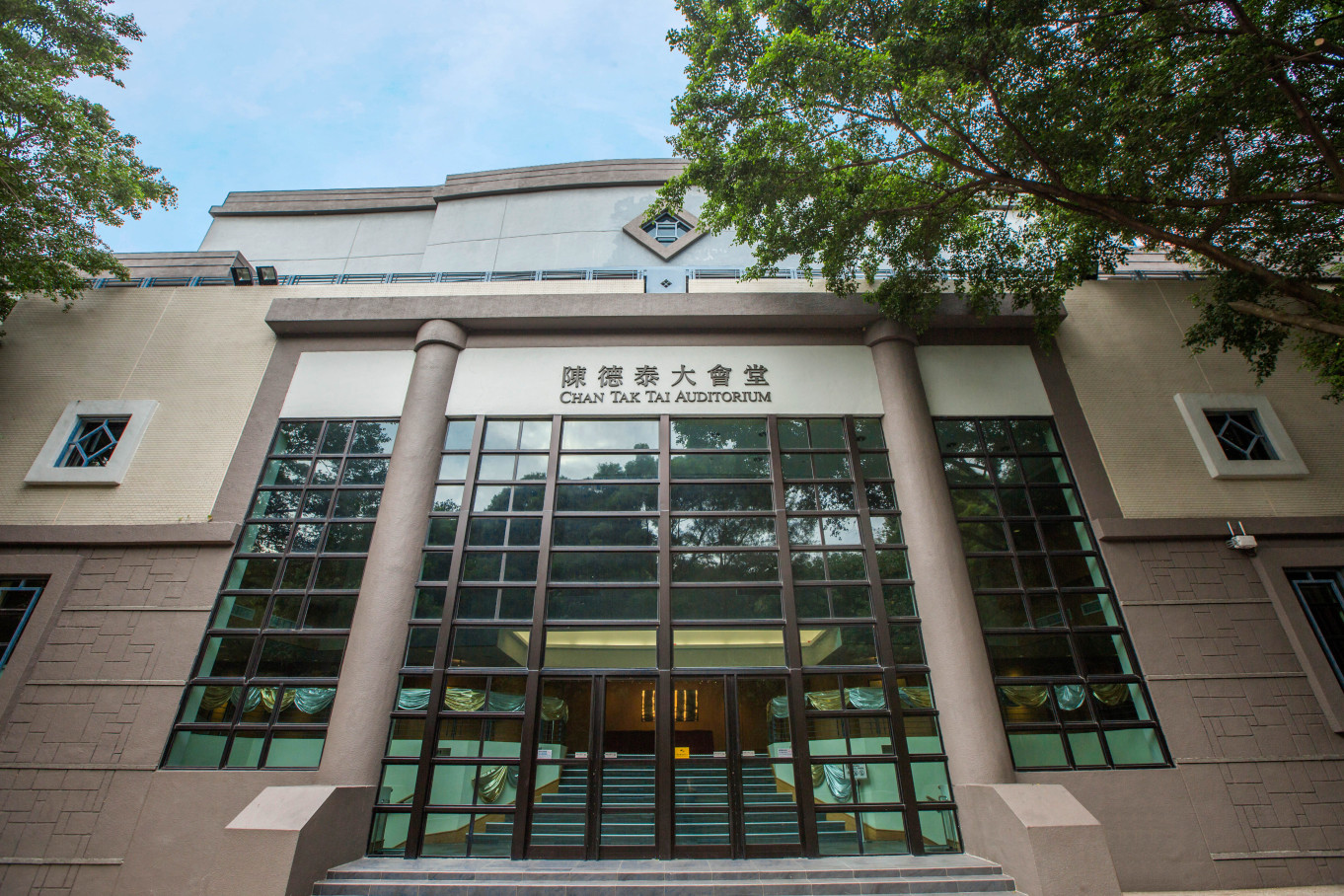

Front view of Chan Tak Tai Auditorium

Front view of Chan Tak Tai Auditorium

House

SeatingContinental, Stall seats are divided by 2 aisles
Seating Capacity1,030 comprising: Stall 732, Balcony 298
Wheelchair Spaces3 wheelchair spaces at Stall



Sound System

ConsoleYamaha QL5 Digital Mixing Console
MicrophoneWire Vocal Microphone; Wireless Handheld Microphone; Wireless Clip Microphone; Condenser Microphone.
Playback EquipmentTascam SS-CDR 250N
RiserWenger Versatile Staging and Seated Risers
Choral RiserWenger Tourmaster Choral Riser; 6' (1.8m) 3 step, 18" step
Music StandWenger music stands
PianoYamaha Grand Piano GB1K



Stage

Stage Area185.7 meter sq. (~18m x 10.4m)
Stage SurfaceTeakwood
Flying Height22m
Proscenium to the front of Stall3m; With Traveler Curtain



Flying System

Motor Fly-bar

Total 22 motorized flying bars:

  • 5 light bars
  • 4 bars with borders
  • 4 bars with leg pairs
  • 4 scenery bars (Max. load: 250kg, Length: 12m)
  • 1 scenery bar for Lingnan University only (Max. load: 250kg; Length: 12m)
  • 1 bar with back curtain in pink color
  • 1 bar with middle curtain in black color
  • 1 bar with cyclorama
  • 1 bar with projector screen 6.874m (W) x 4.089 (H)



Stage Lighting System

ConsoleColortran ETC Ion Xe2.0
Spotlight44 LED Profile Spotlights, 48 LED Fresnel Spotlights, 15 RGBW Profile Lights and 9 Colour LED Cyclorama Lights
Follow Spotlight2 PR Lighting PR-1600 RGBW LED Follow Spotlights
Projection Screen6.874m (W) x 4.089m (H) (Rear Projection)



Video Projection System

Video ProjectorPanasonic PT-RZ120LB
Playback equipmentDVD, CD
Input Signal1080p/50 (SDI / HDMI)



Auxiliary Power Supplies (220V 50Hz)

4 nos. of 63A TPN switch with power outlet on side stage



Other Facilities

VIP Room6 seats; area: 3.3m x 4.5m
Dressing Room30 seats; area: 7.9m x 11m; shower rooms included
LobbyArea: 12m x 20m
